48V DC, 38Ah/1.94kWh

Australian Designed, Engineered & Supported

Hybrid & Off Grid Application
Industrial – Commercial – Residential

LFP 48V, 38Ah

Mission Critical

Front Terminal

GC48V-038-T-C

Industry: Rail, Communications, and Power Generation

Application: Hybrid, Off Grid, DC Systems, Back-up power, DC Switching, Substation, UPS, Off-Road Trucks, Trailers, Signalling Trailers, Corrosive Environments

Specification Basics:

48V – 1.945kWh/38Ah
LiFePO4/LFP (Lithium-ion Ferro Phosphate)
Internal Self-managed BMS
- No Comms cable required between Battery & Inverter or Battery & MPPT
LFP Cylindrical Cells
- Cylindrical Cell Format provides twice the capacity retention holding rates over cheaper more widely adopted Prismatic Cells.

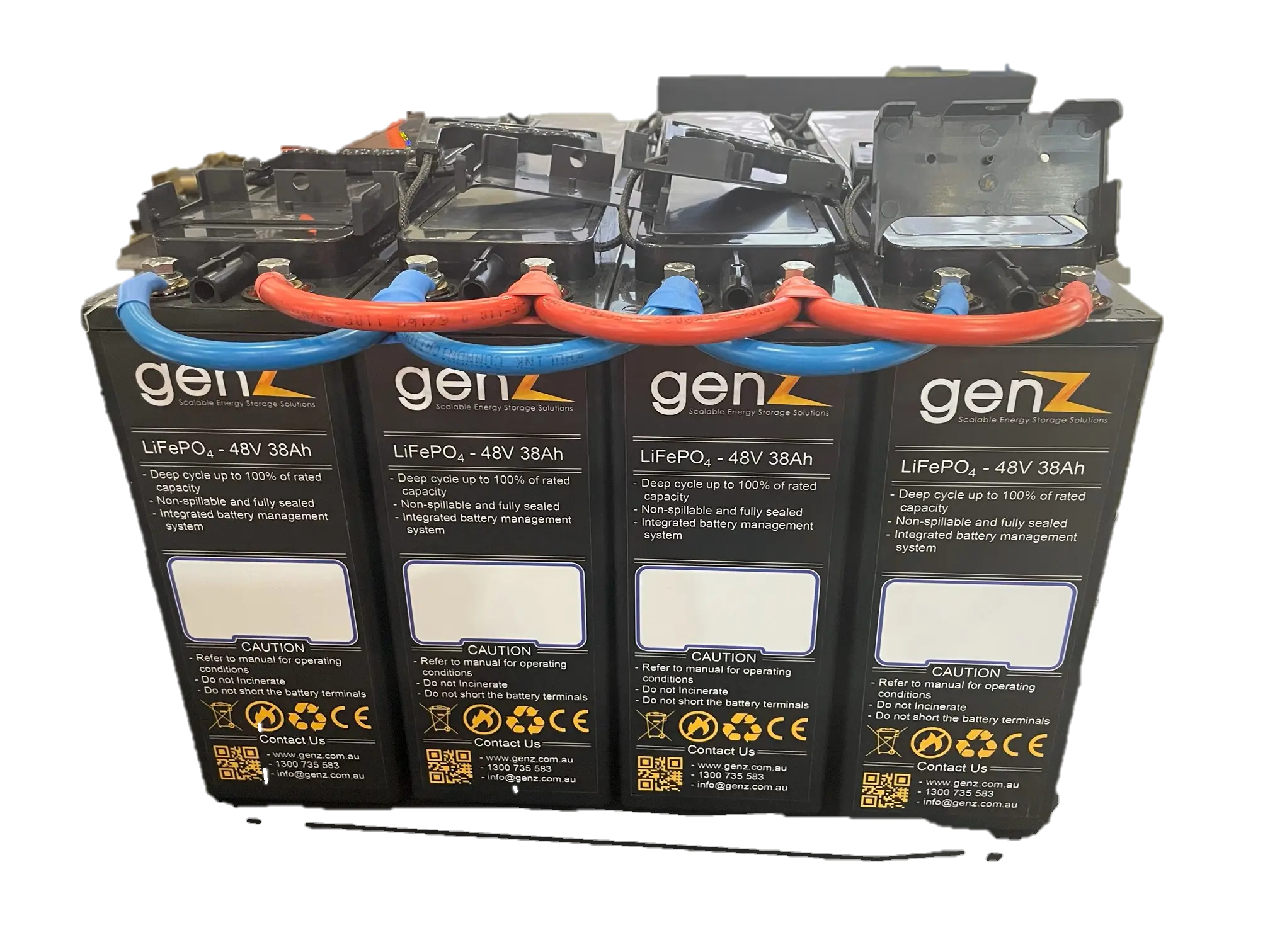

550D X 110W X 290H. Qty-4 on a 19inch wide rack shelf = 152Ah
Expandable Storage solution 1.9kWh to 1MWh
Parallel Cable links available

48V DC, 38Ah/1.94kWh Specifications

Downloads

Certification, Software & Firmware

genZ Nom Voltage (PCE Ref Voltage)	51.2V (48V)
Nominal Capacity	38Ah
Maximum Continuos Current	15A
Nominal Charge Current	7.6A
Charge/Discharge Cycles	2,500 @ 100% DoD, 10-40°C
Charge Voltage	57.6V
Float Voltage	54.2 - 55.2V
BMS over-Voltage Cut-off	58.4V (approximate)
BMS under-Voltage Cut-off	40V (approximate)
BMS Short Circuit Cut-off	140A (20ms trip)
BMS over-Temperature Cut-off	65°C
Charge time approximate	5 hours at 7.5A
Operating Temperature	Charge 0° to 60°C, discharge -20° to 60°C
Terminal Information	M8 Bolt: red (+), black (-). Terminal post adaptors available
Ingress Protection Rating	IP52
Dimensions (mm)	550(L) x 112(W) x 315(H) ± 2mm
Weight of Module	13.7 ± 0.3kg
Lithium Composition	Lithium Ferro Phosphate (LiFePO4 or LFP)
Warranty	5 years. See genz.com.au for Terms & Conditions
Important Wiring Notes	Can be connected in parallel to increase system capacity.
Important Wiring Notes	Connecting in series will void warranty.
Part Number	GC48V-038LFP-T-C
