48V Distribution Module

Plug ‘n’ Play all connections in one tidy module

BUSbar – circuit protection – comm’s gateway

Australian Designed, Engineered & Supported

Distribution Module

BUSbar & Circuit protection

ZDC Comms Gateway

DM21100100ZT-01

Distribution Module Std

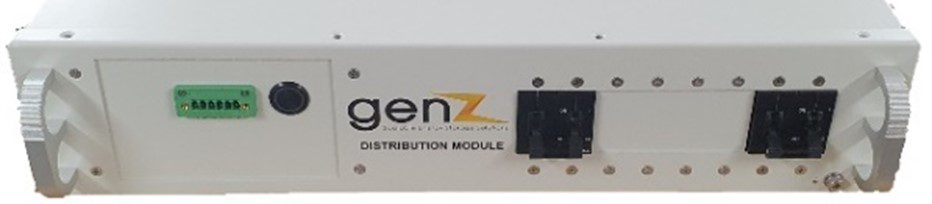

Distro without ZDC/Gateway

x2 <60A, 80 or 100A 2-pole breakers

DM21100100ST-01

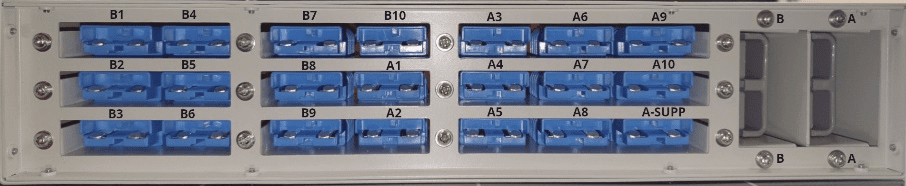

Rear of Distribution Module

x21 Battery BUS connectors (SB50)

x2 PCE connectors (SB150) 100A each

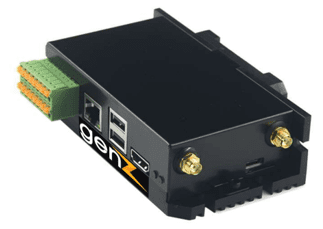

gen Z Z-Data Controller

Model Numbers GZ-ZDC-WiFiBT-01A an GZ-ZDC-LTE-01A series CM4

Combine:

  • up to 21 rack batteries over x2 independent circuits

Integrate:

  • ZDC (Edge computing device) for Smart Battery BMS monitoring, alarm & 3rd party control – via Modbus & SNMP

Specifications Basics:

  • Battery Height: 2RU
  • Standard Distro = No ZDC/gateway installed (DM21100100ST-01)
  • Distro with ZDC/Gateway installed (DM21100100ZT-01)
  • Rated 400A max or 200A/circuit
  • Plug ‘n’ Play – Batteries to BUS & BUS to PCE/Inverter
  • 21 Port SB50 Blue Anderson connector (Cable Lug/16mm2 )21st port could be PCE voltage sense connection, keeping battery strings even numbers
  • PCE/Inverter connection via Dual 175 Anderson connectors
  • Dual60, 80 or 100A 2-Pole Circuit breaker 20kA (Magnetic Hydraulic)
  • Circuit Breaker Bank Monitoring (NO/COMM/NC)
  • LED status Indicator
