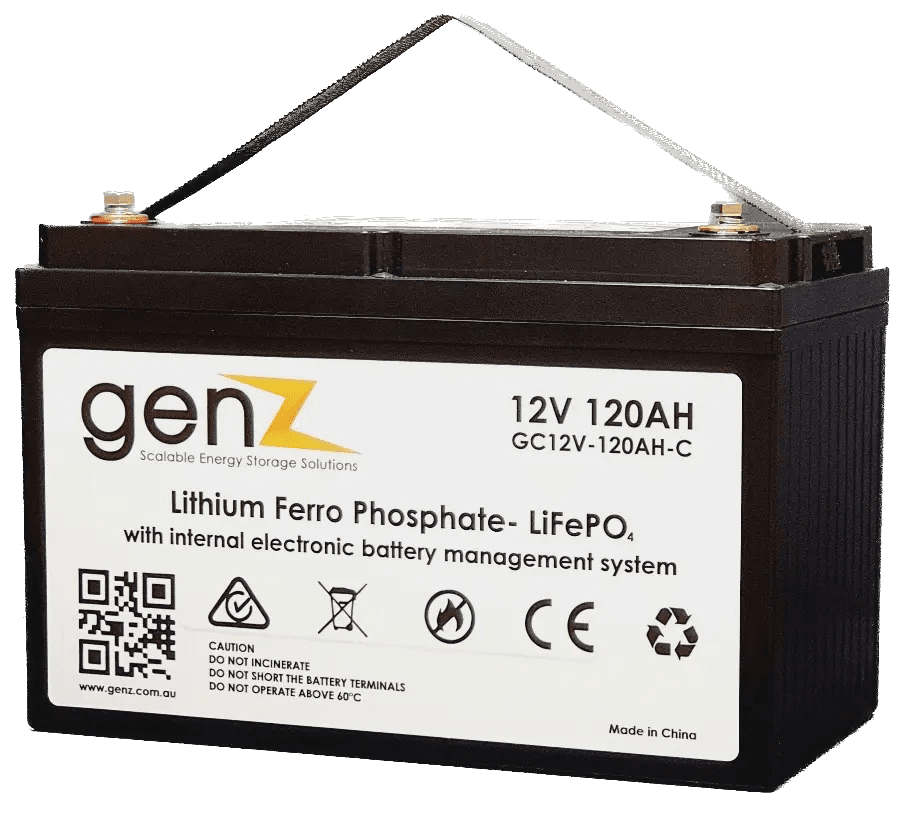

12V DC, 120Ah/1.53kWh N70

Australian Designed, Engineered & Supported

Hybrid & Off Grid Application
Industrial – Commercial – Residential

12V, 120Ah. N70

Mission Critical

GC-12V-120-LFP-C

12V DC Plastic Case Series

Industry: Rail, Communications, and Power Generation

Application: Hybrid, Off Grid, DC Systems, Back-up power, DC Switching, Substation, UPS, Off-Road Trucks, Trailers, Signalling Trailers, and Corrosive Environments

Specification Basics:

  • 12V – 1.536kWh/120Ah
  • LiFePO4/LFP (Lithium-ion Ferro Phosphate)
  • Internal Self-managed BMS
    • No Comms cable required between Battery & Inverter or Battery & MPPT
  • LFP Cylindrical Cells
    • Cylindrical Cell Format provides twice the capacity retention holding rates over cheaper more widely adopted Prismatic Cells
  • Expandable Storage solution
  • Parallel Cable links available
12V, 120Ah Specifications
Downloads
Certification, Software & Firmware
genZ Nom Voltage
(PCE Reference Voltage)
12.8V
(12V)
Nominal Capacity120Ah
Maximum Continous Current30A
Charge/Discharge Cycles2,500 @ 100% DoD, 10-40°C
Charge Voltage14.4V
Float Voltage13.6 - 13.8V
BMS over-Voltage Cut-off14.6V (approximate)
BMS under-Voltage Cut-off10V (approximate)
BMS Short Circuit Cut-offYes (20ms trip)
BMS over-Temperature Cut-off65°C
Charge time approximate5 hours at 24A
Operating TemperatureCharge 0° to 60°C, discharge -20° to 60°C
Terminal InformationM8 Bolt: red (+), black (-). Terminal post adaptors available
Ingress Protection RatingIP52
Dimensions (mm)328(L) x 172(W) x 213(H) ± 3mm
Weight of Module13.6 ± 0.3kg
Lithium CompositionLithium Ferro Phosphate (LiFePO4 or LFP)
Warranty5 years. See genz.com.au for Terms & Conditions
Important Wiring NotesCan be connected in parallel to increase system capacity.
Connecting in series will void warranty.
Part NumberGC12V-120LFP-C
