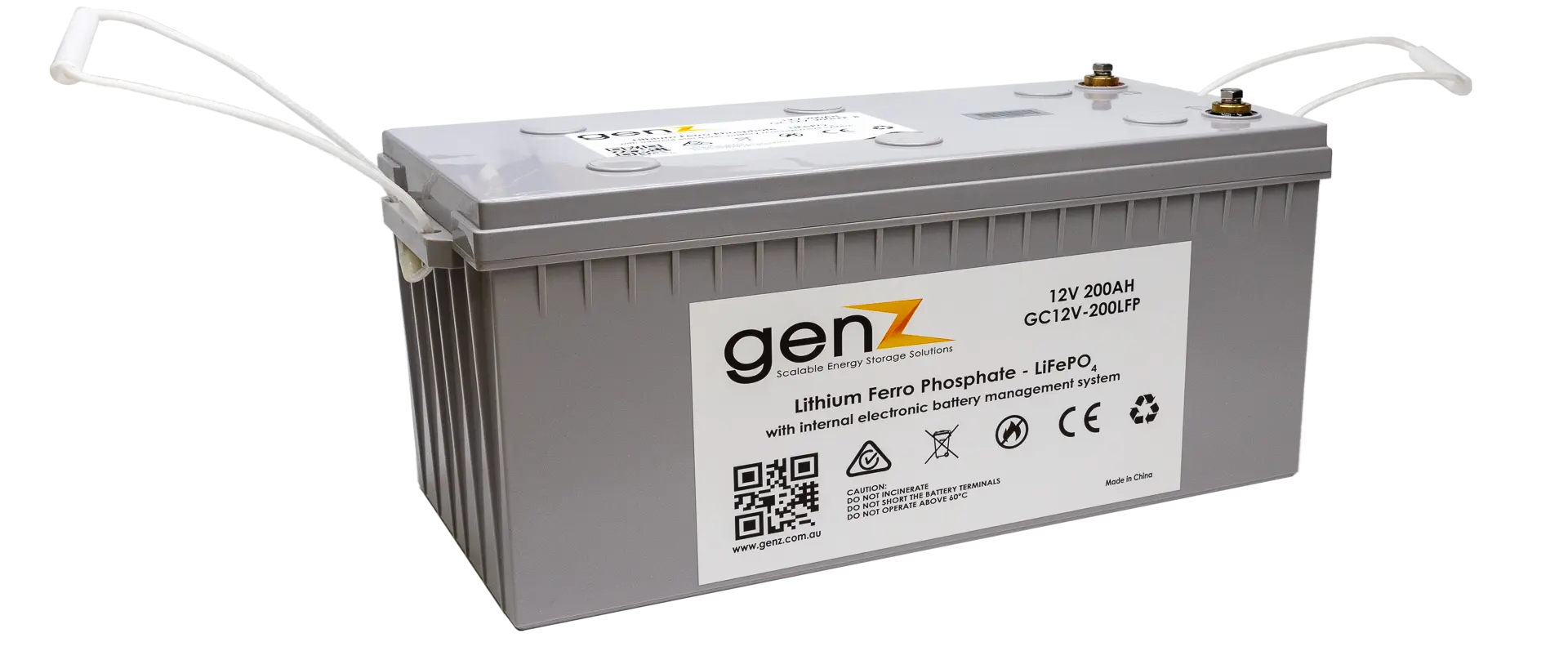

12V DC, 200Ah/2.56kWh
Australian Designed, Engineered & Supported
Hybrid & Off Grid Application
Industrial – Commercial – Residential
12V, 200Ah. N150
Mission Critical
GC-12V-200-LFP-C
12 Volt DC Plastic Case Series
Industry: Rail, Communications, and Power Generation
Application: Hybrid, Off Grid, DC Systems, Back-up power, DC Switching, Substation, UPS, Off-Road Trucks, Trailers, Signalling Trailers, and Corrosive Environments
Specification Basics:
- 12Volt – 2.56kWh/120Ah
- LiFePO4/LFP (Lithium-ion Ferro Phosphate)
- Internal Self-managed BMS
- No Comms cable required between Battery & Inverter or Battery & MPPT
- LFP Cylindrical Cells – High Capacity 3800mAh
- Cylindrical Cell Format provides twice the capacity retention holding rates over cheaper more widely adopted Prismatic Cells
- Expandable Storage solution
- Parallel Cable links available
- Series connection = NOT possible
12V, 200Ah Specifications
Downloads
Certification, Software & Firmware
| genZ Nom Voltage (PCE Reference Voltage) | 12.8V (12V) |
|---|---|
| Nominal Capacity | 200Ah |
| Maximum Continous Current | 80A |
| Charge/Discharge Cycles | 60A |
| Charge Voltage | 14.4V |
| Float Voltage | 13.6v - 13.8V |
| BMS over-Voltage Cut-off | 14.6V (approximate) |
| BMS under-Voltage Cut-off | 10V (approximate |
| BMS Short Circuit Cut-off | 350 ± 60A (20ms trip) |
| BMS over-Temperature Cut-off | 65°C |
| Charge time approximate | 3.3 hours at 60A |
| Operating Temperature | Charge 0° to 60°C, discharge -20° to 60°C |
| Terminal Information | M8 Bolt: red (+), black (-). Terminal post adaptors available |
| Ingress Protection Rating | IP65 |
| Dimensions (mm) | 521(L) x 233(W) x 222(H) |
| Weight of Module | 28.3kg |
| Lithium Composition | Lithium Ferro Phosphate (LiFePO4 or LFP) |
| Warranty | 5 years. See genz.com.au for Terms & Conditions |
| Important Wiring Notes | Can be connected in parallel to increase system capacity. |
| Connecting in series will void warranty. | |
| Part Number | GC12V-200LFP-C |
