12V DC, 60Ah

Australian Designed, Engineered & Supported

Hybrid & Off Grid Application
Industrial – Commercial – Residential

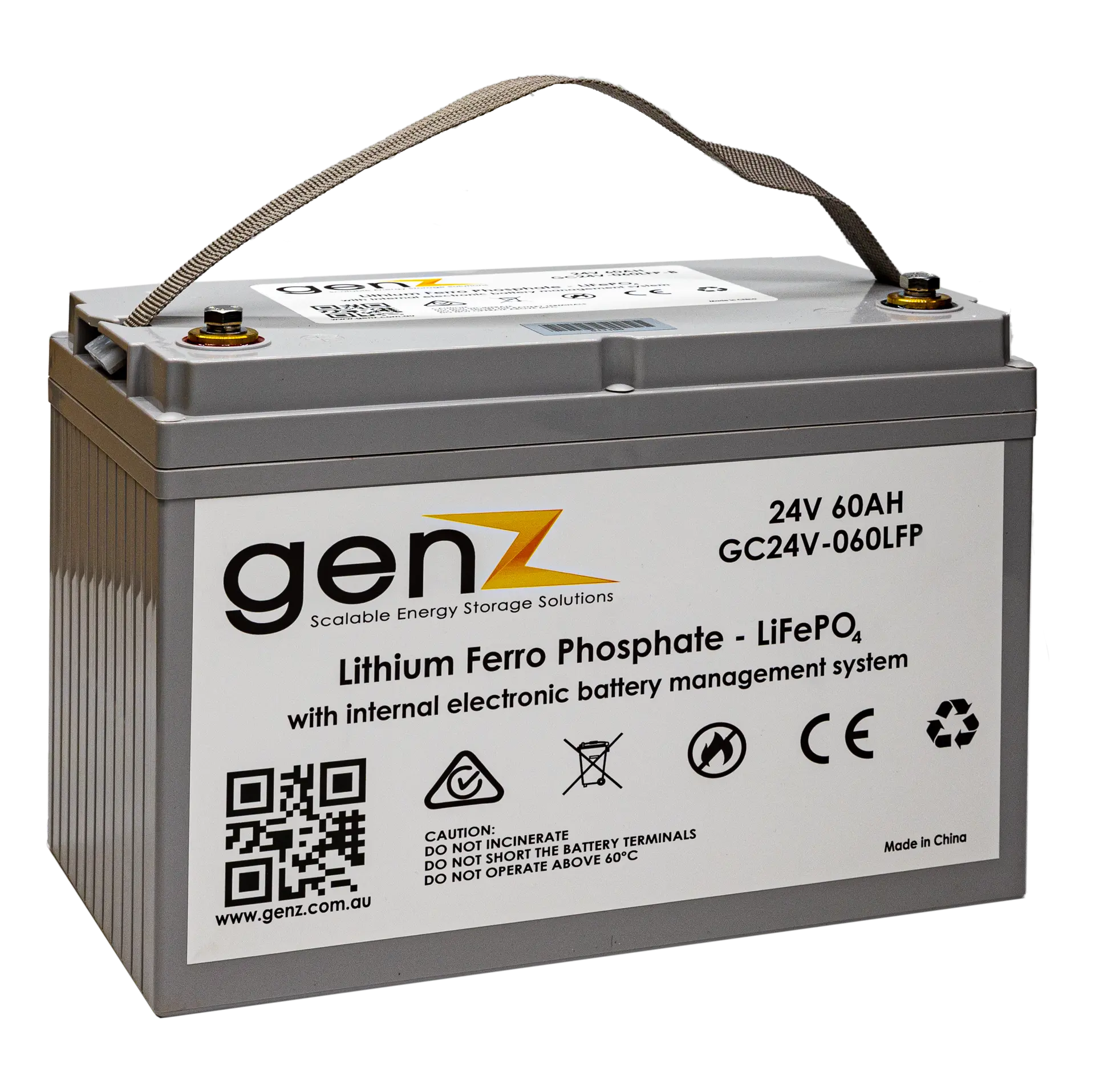

LFP 24V, 60Ah. N70

Mission Critical

GC-24V-060-LFP-C

Industry: Rail, Communications, and Power Generation

Application: Hybrid, Off Grid, DC Systems, Back-up power, DC Switching, Substation, UPS, Off-Road Trucks, Trailers, Signalling Trailers, Corrosive Environments

Specification Basics

  • 24V – 1.53kWh/60Ah
  • LiFePO4/LFP (Lithium-ion Ferro Phosphate)
  • Internal Self-managed BMS
    • No Comms cable required between Battery & Inverter or Battery & MPPT
  • LFP Cylindrical Cells
    • Cylindrical Cell Format provides twice the capacity retention holding rates over cheaper more widely adopted Prismatic Cells
  • Expandable Storage solution
  • Parallel Cable links available
24V DC, 60Ah N70 Specifications
Downloads
Certification, Software & Firmware
Product ModelGC-24V-060LFP-C
genZ Nom Voltage
(PCE Reference Voltage)
26.6V
(24V)
Nominal Capacity60Ah
Charge/Discharge Cycles2,500 @ 100% DoD, 10-40°C
Charge Voltage28.8V
Float Voltage27.2 - 27.6V
BMS over-Voltage Cut-off29.2V (approximate)
BMS Short Circuit Cut-offYes (20ms trip)
BMS over-Temperature Cut-off65°C
Charge time approximate5 hours at 12A
Operating TemperatureCharge 0° to 60°C, discharge -20° to 60°C
Terminal InformationM8 Bolt: red (+), black (-). Terminal post adaptors available
Ingress Protection RatingIP52
Dimensions (mm)328(L) x 172(W) x 213(H) ± 3mm
Weight of Module13.8 ± 0.3kg
Lithium CompositionLithium Ferro Phosphate (LiFePO4 or LFP)
Warranty5 years. See genz.com.au for Terms & Conditions
Compatible Inverter/Chargers#Commercial examples: Eaton, Eltek, Morningstar.
Residential hybrid / off-grid examples: Victron, Selectronic, Redarc, Intervolt, Plasmatronics
Important Wiring NotesCan be connected in parallel to increase system capacity.
Connecting in series will void warranty.
Part NumberGC24V-060LFP-C
